Applying of oil to a nozzle after cleaning it by air gun, cotton swab and waste cloth.
If you leave the nozzle without doing anything to it after cleaning it, the inside of the nozzle may be rusted.

Follow the procedure below to apply oil to the nozzle slider:
1, After cleaning the nozzle, use an air gun or similar device to blow off alcohol remaining in the nozzle.

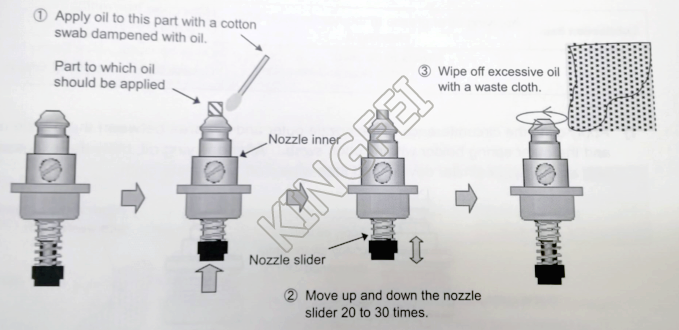

2, Apply one drop of oil to the section shaded in the figure below( section protruded from the nozzle inner when you push the nozzle slider in the direction indicated with the arrow mark) with a cotton swab whose half part is dampened with oil.
3, Move the nozzle slider up and down twenty to thirty times to spread oil over the entire nozzle slider.
4, Wipe off excessive oil around the nozzle with clean waste cloth.

5, After applying oil to the nozzle slider, return the nozzle to the ATC unit, and select the <Machine setup> command and the <ATC Nozzle layout> command in this order.

Caution:
i Do not use oil any other than New Defrex Oil No.1 to a nozzle. If you use oil whose viscosity is high such as grease, the nozzle slider cannot return to its original position normally.
ii Be sure to return the nozzle the ATC unit instead of the head.
