Maintenance of transport screw shaft(shaft)
Dec 28, 2021 Editor: admin

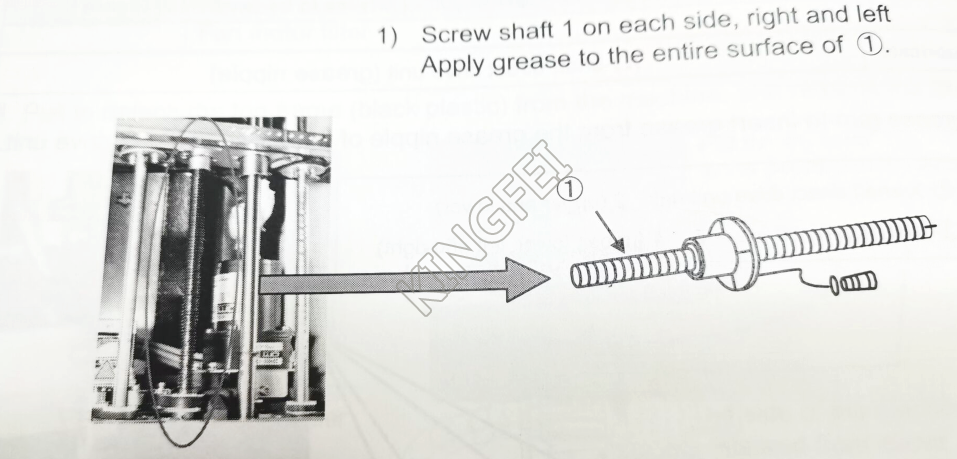

Transport screw shaft(shaft):1> Screw shaft on each side, right and left. Apply grease to the entire surface of screw shaft.
Tool to be used: Brush
Grease to be used: 6459 Grease N
Transport guide shaft:
2> Guide shaft: 2 on the left, 3 on the right. Apply grease to the entire surface of it.
Tool to be used: Brush
Grease to be used: 6459 Grease N

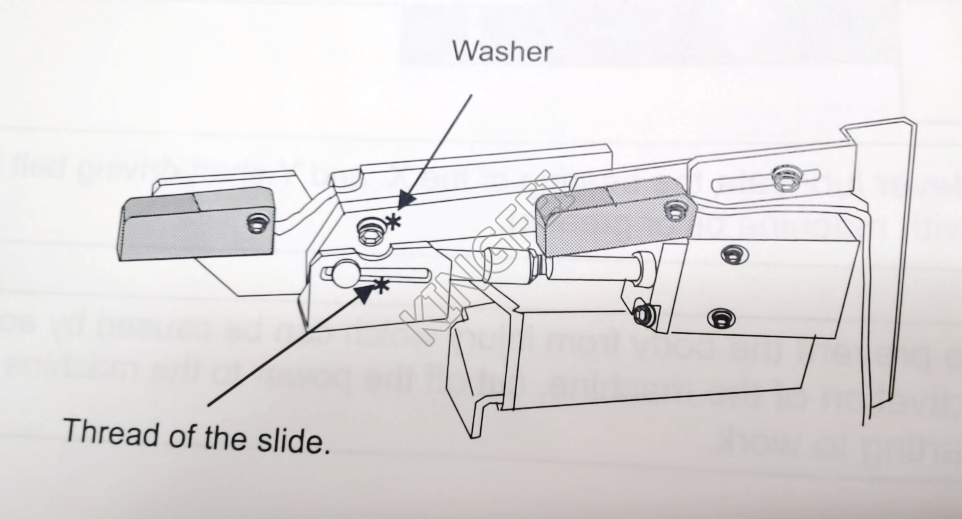

PWB Stopper part:
3> Apply grease to the washer and the thread of the slide.
Tool to be used: Brush
Grease to be used: 6459 Grease N
